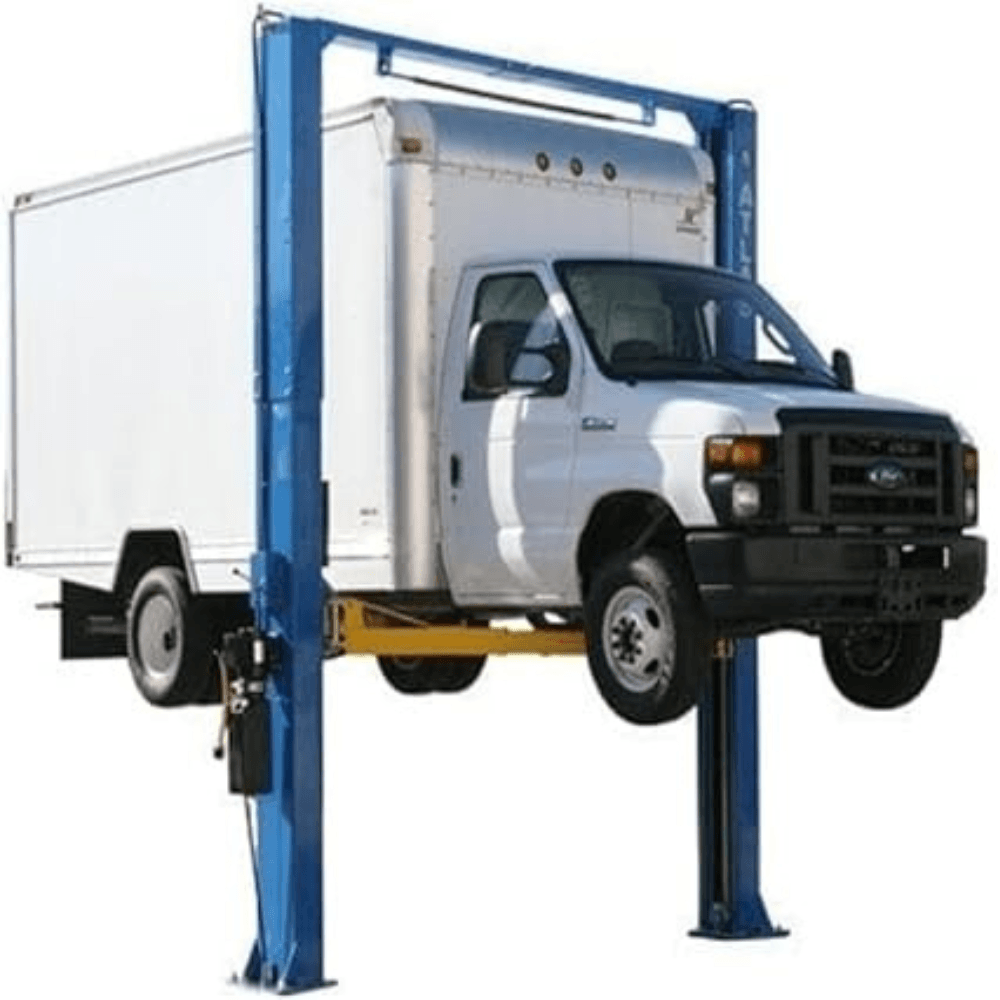

Atlas 15000 Lb- Capacity Overhead 2-Post Lift

Atlas 15000 LB Capacity Overhead Two-Post LiftThe Atlas 15000 LB Overhead Two-Post Lift is a heavy-duty, commercial-grade lift designed for extra tall and extra wide vehicle servicing. With a 15,000 lb. lifting capacity, this lift is perfect for large trucks, vans, and heavy-duty vehicles in professional automotive repair shops.Its adjustable height settings (165″, 177″, or 150″ with extra cables) make it adaptable for various shop layouts, while its symmetric arms, direct-drive cylinders, and automatic arm restraints ensure efficiency, safety, and durability.Key Features & Benefits

• 15,000 lb. Lifting Capacity – Handles large trucks, SUVs, and heavy-duty vehicles.
• Extra Tall & Extra Wide Design – Provides ample clearance for oversized vehicles.
• Adjustable Height Settings – Standard: 165″ (13′ 9″) or 177″ (14′ 9″). Special Low Height: 150″ (12′ 6″) (Requires purchase of extra cables).
• Symmetric Arms – Offers even weight distribution for secure lifting.
• Automatic Arm Restraints – Ensures arms stay locked in place during lifting.
• “Padded” Shut-Off Bar – Prevents vehicle damage from excessive lifting height.
• Door Guards on Carriages – Protects vehicle doors from scratches or dents.
• Single Point Lock Release – Simplifies operation by unlocking both columns simultaneously.
• Direct-Drive Cylinders – Ensures smoother, more efficient lifting with fewer maintenance needs.
• Powder Coat Finish – Enhances durability and corrosion resistance.
• Free 12-Piece Truck Adapter Set – Expands lifting capabilities for various vehicle types.
• Mounting Hardware Included – Provides everything needed for secure installation.

Technical SpecificationsSpecificationMeasurement / DetailLifting Capacity15,000 lbs.Overall Height (Standard Settings)165″ (13′ 9″) or 177″ (14′ 9″)Special Height Setting150″ (12′ 6″) (Requires Extra Cables)Overall Floor Width150 3/4″ (12′ 6 3/4″)Outside Column Width139 1/8″ (11′ 7 1/8″)Inside Column Width123 1/2″ (10′ 3 1/2″)Drive-Thru Clearance109 1/2″ (9′ 1 1/2″)Maximum Lift Height (Without Adapters)72 1/4″Maximum Lift Height (With Adapters)81″Minimum Pad Height7 1/4″Column Size7 1/2″ x 14 1/2″Base of Column17 1/2″ x 20 1/2″Column Steel Thickness6mmArm Steel Thickness6mmMotor / Electrical Requirement220V Single Phase, 30 Amp Breaker RequiredOil Requirement3-5 Gallons AW32 or AW46 (Not Included)Shipping Weight2,490 lbs.Adapter Heights4 Each: 1.25″, 2.5″, 5″Arm Hole / Adapter Peg Size1.5″Installation RequirementsMinimum 6″ thick, 3,000 psi concrete foundation.13’7″ ceiling clearance required at lowest setting.Why Choose the Atlas 15000 LB Overhead Two-Post Lift?The Atlas 15000 LB is an excellent choice for commercial repair shops that need a durable, high-capacity two-post lift. Its extra tall and extra wide design, symmetric arms, and direct-drive hydraulic system provide exceptional lifting power and safety.For heavy-duty vehicle maintenance, fleet servicing, and professional-grade lifting, the Atlas 15000 LB Overhead Two-Post Lift is the ideal solution!
