Atlas 9000 LB High Rise Scissor Lift

‘

Atlas SLP-9K Full-Rise Scissor Lift – 9,000 lb. Capacity

The Atlas SLP-9K is a commercial-grade, full-rise scissor lift designed for shops with limited ceiling height while still providing a powerful lifting capacity of 9,000 lbs. With a maximum lifting height of 78 inches (6’6″), this lift is perfect for servicing SUVs, pickup trucks, and other vehicles in professional garages and workshops.

Its low-profile platform height (4.5 inches) and flush-mount capability provide a clean, unobtrusive appearance, making it an excellent choice for shop owners who want a sleek, space-efficient lifting solution. The adjustable width between platforms (up to 31 inches) ensures versatility for different vehicle frames.

The SLP-9K is equipped with a separate control panel, air-actuated safety locks, and UHMP wear blocks, ensuring long-lasting, high-performance operation.

Key Features & Benefits

• 9,000 lb. Lifting Capacity – Ideal for full-frame and unibody SUVs, trucks, and passenger vehicles.
• Full-Rise Scissor Lift (78” Max Height) – Provides ample clearance for undercar repairs, wheel service, and maintenance.

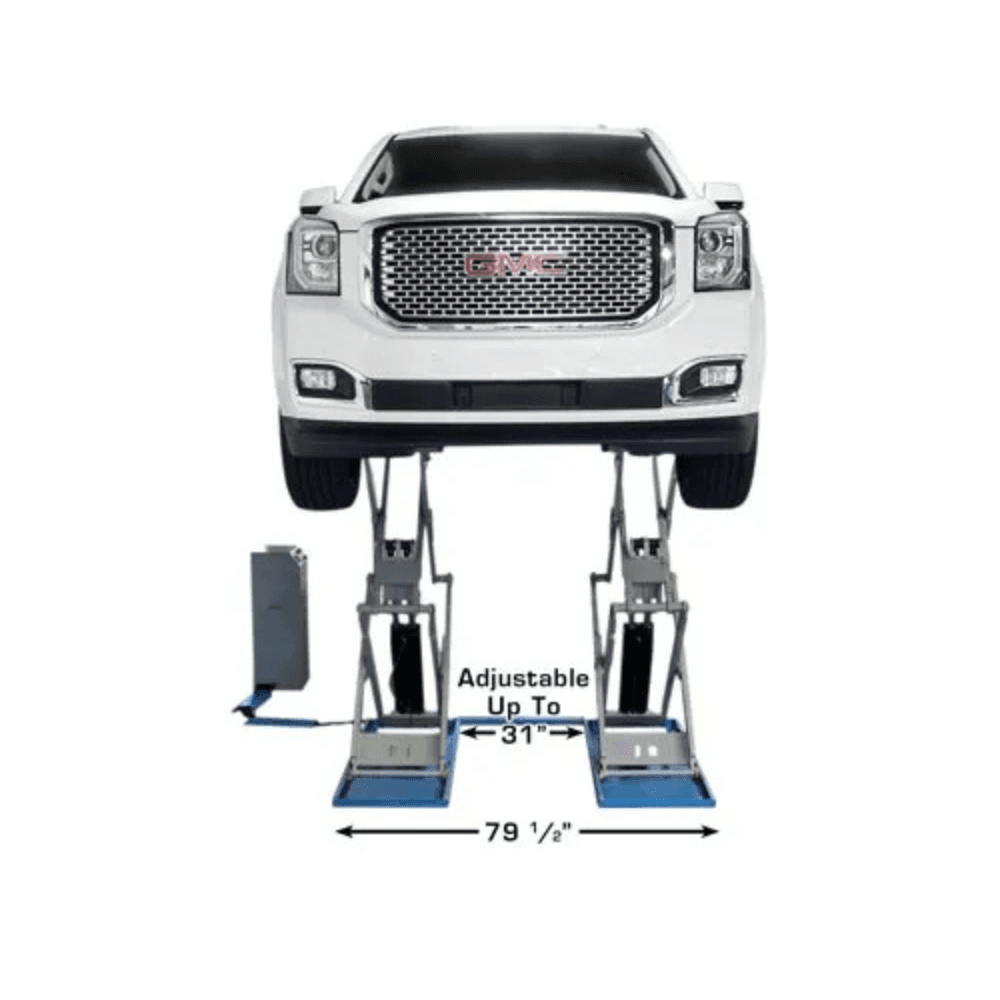

• Adjustable Width Between Platforms – Up to 31 inches, accommodating various vehicle types.
• Flush-Mount Capability – Allows for a flat surface installation, creating a seamless, clean shop floor appearance.
• Locking Approach Ramps – Converts into additional work surfaces when locked in a horizontal position.
• 10 Air-Actuated Locking Positions – Ensures safe and stable lifting at multiple height levels.
• Separate Self-Contained Control Panel – Provides easy access and convenient operation.
• Zerk Grease Fittings at Each Hinge Point – Enhances lubrication and longevity.
• UHMP Wear Blocks – Maintains high-quality performance over time.
• CE Certified – Meets international safety and quality standards.
• Safety Lowering Limit Switch – Stops descent at 10.5 inches for added protection.
• 220V Single-Phase Motor (2 HP) – Ensures efficient and reliable operation.

Technical Specifications Specification Measurement / Detail Lifting Capacity9,000 lbs. Maximum Lifting Height78″ (6′ 6″) Overall Length82″ Maximum Overall Width79 ½” Lift Platform Dimensions59 ½” x 24″ Lowered Height4 ½” Width Between PlatformsAdjustable up to 31″ Approach Ramp Dimensions11″ x 24″ Power Unit2 HP, 220V +/- 5% (209-231V), Single Phase Breaker Requirement30 Amp Locking Positions10 Locks Actuated ByAir Lifting Cylinders4 (2 in Each Platform) Oil Requirement3.5 Gallons AW32/AW46 Shipping Weight2,400 lbs. Why Choose the Atlas SLP-9K?

The Atlas SLP-9K is an excellent full-rise scissor lift designed for shops with limited ceiling height while still offering maximum lifting power. With flush-mount capability, adjustable width, and robust safety features, this lift is perfect for professional mechanics and shop owners who need a clean, efficient, and powerful lifting solution.

For a durable, high-performance scissor lift that blends seamlessly into any workspace, the Atlas SLP-9K is the ultimate choice!
