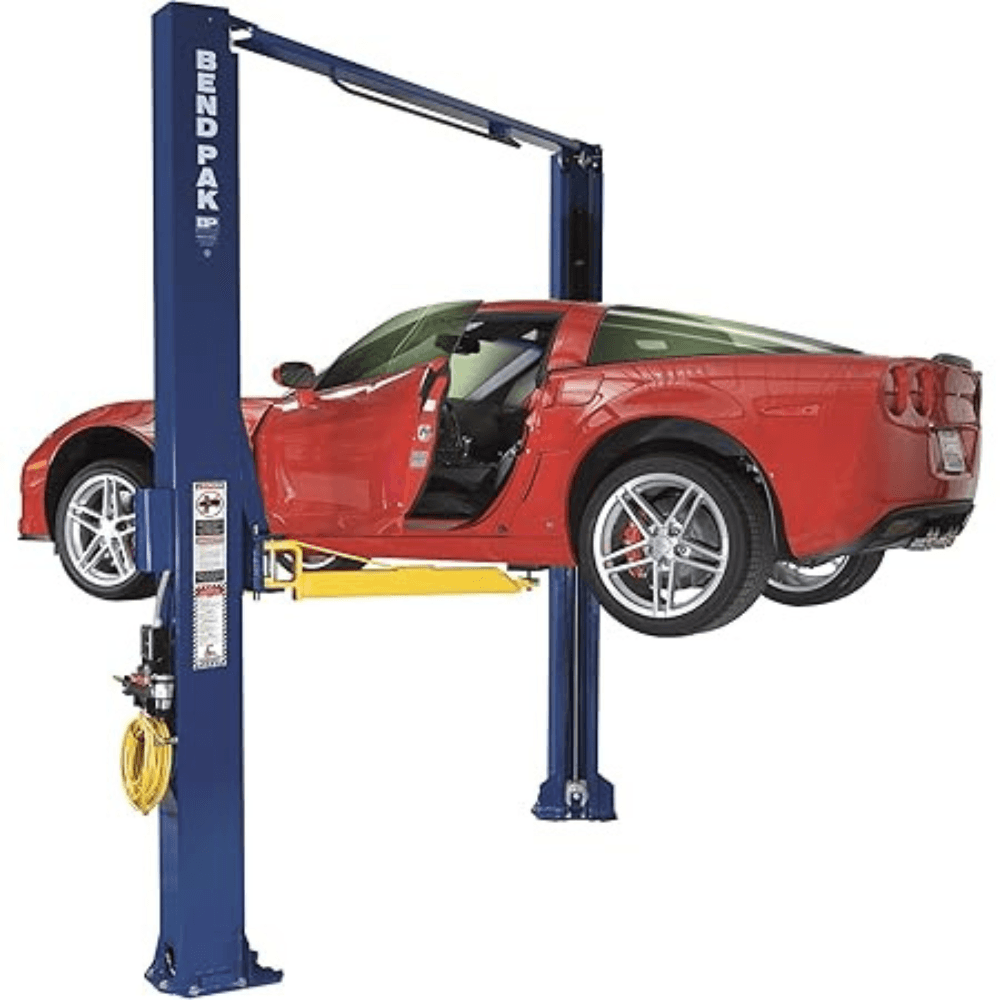

BendPak XPR-10AS-LP Two-Post Lift – 10,000 lb. Capacity (Asymmetric)

The ultimate two-post lift for performance garages and professional auto shops.The BendPak XPR-10AS-LP is a high-performance asymmetric two-post lift featuring exclusive Low-Pro™ arms designed specifically for lowered sports cars and vehicles with lift points at the extreme edges of the chassis. Engineered for professional garages and automotive service shops, this industrial-strength lift offers cutting-edge technology, superior materials, and a robust 10,000 lb. lifting capacity.With expandable width configurations, dual hydraulic direct-drive cylinders, and a reinforced structure, the XPR-10AS-LP delivers maximum efficiency, safety, and reliability.Key Features & Benefits

• 10,000 lb. Lifting Capacity – Handles cars, trucks, SUVs, and low-profile sports cars.
• Low-Pro™ Arms – Ideal for lowered vehicles with lift points at the chassis edge.
• Asymmetric Design – Allows easier vehicle entry/exit and better workspace ergonomics.
• Expandable Top Beam – Adjustable for narrow or wide drive-thru configurations.
• Double-Telescoping Screw Pads – Versatile and adaptable for various vehicles.
• Padded Overhead Safety Shutoff Bar – Prevents over-lifting and damage.
• Tru-Metric™ Arm Design – Flexible arm positioning for different vehicle sizes.
• 30° Rotated Single-Piece Columns – Improved lifting angles and column stability.
• Single-Point Safety Release – Simplifies locking/unlocking process.
• Dual Hydraulic Direct-Drive Cylinders – Smooth, powerful, and low-maintenance lifting.
• Oversized 53″ Tall Carriage – Increases lift durability and strength.
• Electric / Hydraulic Power System – Efficient, powerful, and easy to use.
• 17″ x 19″ A36 Steel Base Plates – Ensures maximum stability and safety.
• Dura-Glide™ UHMW Polyethylene Bearings – Self-lubricating for smooth operation.
• 1/2″ Aircraft-Quality Equalizer Cables – Long-lasting, reliable, and safe.
• Safety Locks Every 3″ – Multiple height settings ensure secure lifts.
• Automatic Arm Restraints – Keeps arms locked in position for added security.
• Versatile Drop-In Contact Pads & Stackable Adapters – Increases vehicle compatibility.
• 4-Piece 63mm Adapter Set Included – Expand lift range for various vehicles.
• Meets/Exceeds ANSI/ALI ALCTV-2011 Standards – Top-tier safety compliance.

Technical SpecificationsSpecificationMeasurement / DetailLifting Capacity10,000 lbs. (4,536 kg)Max Capacity (Front / Rear Axle)5,000 lbs. (2,268 kg)Height Overall145″ (3,683 mm)Width Overall (Narrow/Wide)137″ / 145″ (3,480 / 3,683 mm)Width Outside Columns (N/W)133″ / 141″ (3,378 / 3,581 mm)Inside Columns (N/W)104″ / 112″ (2,642 / 2,845 mm)Overhead Shutoff Height141″ (3,581 mm)Front Arm Reach23.5″ – 38.5″ (597 – 978 mm)Rear Arm Reach34.5″ – 54.5″ (876 – 1,384 mm)Minimum Pad Height4.25″ – 6.75″ (108 – 171 mm)Max Lift Height (Pad / +3″ Adapter)73″ – 75″ / 75.5″ – 77.5″Rise69″ (1,753 mm)Drive-Thru Clearance (N/W)94″ / 102″ (2,388 / 2,591 mm)Screw Pad Adjustment2″ (51 mm)Motor220V AC / 60 Hz / Single PhaseTime to Full Rise45 SecondsMax Load Per Arm2,500 lbs. (1,134 kg)Why Choose the BendPak XPR-10AS-LP?The BendPak XPR-10AS-LP is the ideal two-post lift for performance-focused garages and professional automotive shops. With advanced Low-Pro™ arms, an asymmetric design, and heavy-duty direct-drive technology, this lift offers outstanding performance, safety, and vehicle compatibility.Upgrade your shop with the BendPak XPR-10AS-LP
